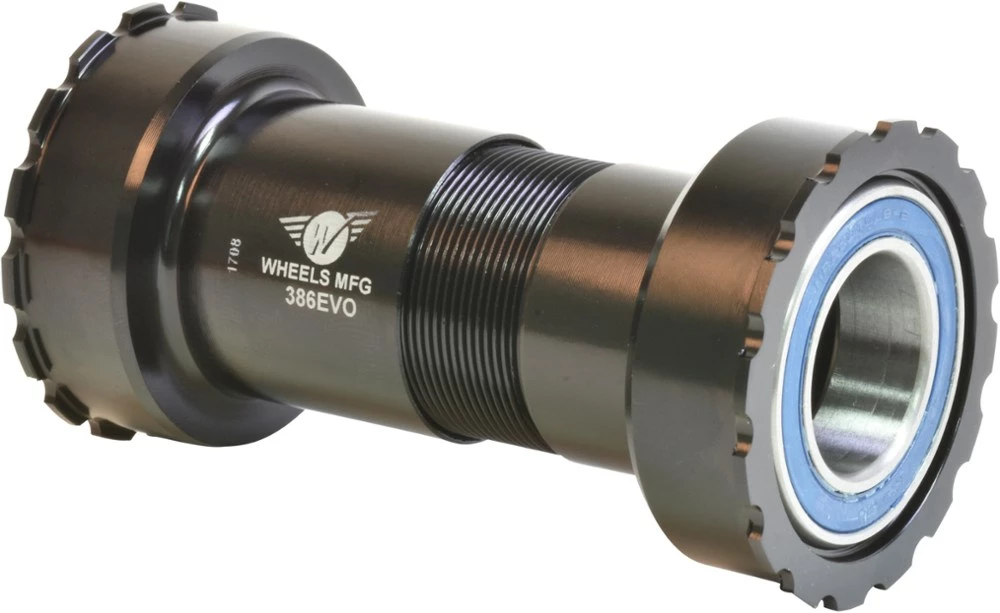

Wheels Manufacturing 386EVO Thread Together Bottom Bracket with Angular Contact Bearings for 22/24mm SRAM GXP Spindles

Providing smooth, long-lasting operation with your bike’s drivetrain, this Wheels Manufacturing 386EVO Thread Together bottom bracket has an angular bearing on the drive side, radial on the other.

Features

• Compatible with BB386EVO and BB392EVO bottom bracket/frame interface and 22/24 mm SRAM/Truvativ GXP crank spindles
• Fits frames with 86 to 92 mm shell widths; 46 mm shell internal diameter
• Machined aluminum cups thread together for stability, increased bearing life and simpler installation/maintenance
• Thread together design also prevents creaking
• Enduro Angular Contact sealed, grade 5 ball bearings on the drive side; ABEC-3 sealed grade 10 chromium-steel ball bearings on the non-drive side
• 52100 high-carbon chromium alloy races are extremely tough and durable for a long life
• Compatible with most Quarq DZero power-meter spiders with GXP spindles, except Eagle MTB
• Not compatible with the following Quarq, SRAM/GXP cranksets: Elsa, Riken, SRAM Red 22, SRAM S975, SRAM S2275, CinQo Saturn or Saturn2
• Quarq spiders with an internal diameter less than 49.5 mm may rub on the cup

Made in USA.

Technical Specs

Best Use	Cycling
Bottom Bracket Installation	Thread Together
Bottom Bracket Standard	BB386
Spindle Interface	No Spindle
Fits Shell Width	86-92 millimeters
Spindle Diameter	22/24 millimeters
Weight	145 grams
Bearing Material	Stainless Steel
Material(s)	Aluminum cups; drive side: Enduro Angular Contact bearings; non-drive side: Enduro ABEC-3 bearings
